Fabrication Bay1

Over head Crane: 10 MT, 15 MT & 7 MT

Covered Shed Area: 4000 sq-ft

Crane Height: 7.9 meter

Shed Height: 13.7 meter

2 Bed Plate: 6100mm X 4000mm

Fabrication Bay2

Over head Crane: 10 MT & 15 MT

Covered Shed Area: 6500 sq-ft

Crane Height: 8.8 meter

Shed Height: 15.2 meter

2 Bed Plate: 5000 mm X 3600mm

Fabrication Bay3

Purpose: Material Preparation

Over head Crane: Two 5 MT

Crane Height: 5.8 meter

Covered Shed Area: 6500 sq-ft

Paint Booth

Part of Bay 1

Paint Booth under Crane

Covered Shed Area: 5500 sq-ft

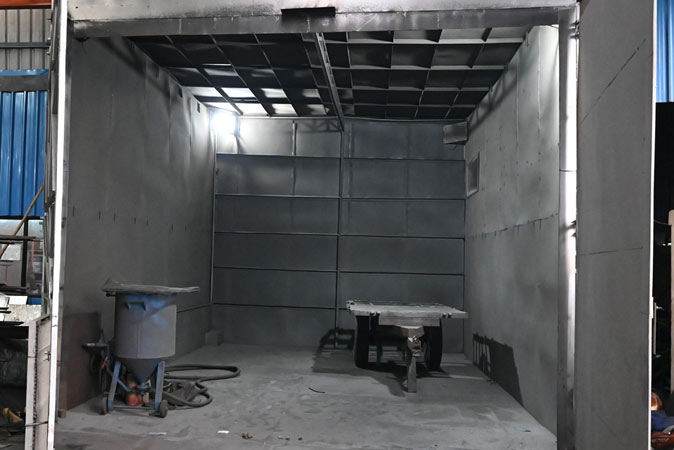

Shot Blasting Booth

Covered Shed Area:

L=7.3m W=5.4m H=4.57 m

40 HP Screw Compressor

7.5 HP Dust Collector

Machine Area & Other Facilities

Lathe M/c: 1

Hexa Cutting: 1

Hydraulic Press: 1

Drill Machine: 3

Diesel Generator: 1

Rolling Machine

Capacity: 10mm x 3000mm

Motor: 10HP & 1440RPM

Heavy Reduction Gear Box

All Turrets are rolled in- house

Conservators are rolled in- house

Curves of tank body are prepared in-house

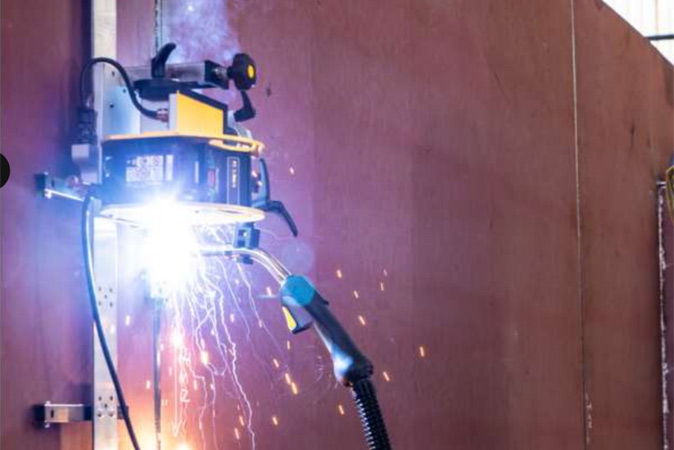

Automatic Vertical Welding

Slide Height Adjst. :45mm

Travel Speed: 25mm/sec

Max Load: 5KG.

Can weld in vertical position as well as in Horizontal Position also.

Process established for (Ar &CO2) MIXTURE OF GASESS.

Close up weld

Automatic Horizontal Welding

Rated Power: 22W

Travel Speed: 0-800mm/min

Magnetic Force: 25KG

MIXTURE OF GASESS.

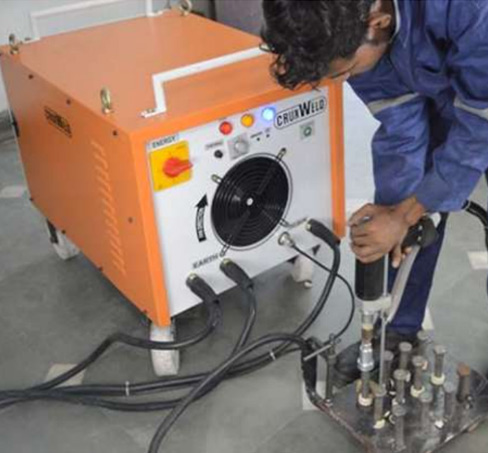

Stud Welding

Reduced Heat Input

Improved weld quality

Increased Productivity

Reduced Spatter

Safer work environment

Versatility

Good Directional control
